Brand Name : DockFender
Model Number : DF-PF3300
Certification : ISO17357, DNV, LR
Place of Origin : CHINA
MOQ : 1 Piece
Price : USD150 to USD2600 One Piece
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1500 PCS Per Month
Delivery Time : 5-6 Work Days
Packaging Details : Pallet, Wooden Case
Product Name : Marine Floating Dock Rubber Fender ISO17357 Yokohama Pneumatic Fender
Material : Best Quality NR
Color : Black or Customized
Diameter : 500mm - 4,500mm
Length : 1,000mm - 12,000mm
Certificate : DNV, ABS, LR
Safety Standard : ISO17357-1:2014
Packing : High Standard Packing
Marine Floating Dock Rubber Fender ISO17357 Yokohama Pneumatic Fender
Description
Pneumatic floating fenders are often used when there is an occasional need for fendering. These fenders are stored onboard vessels when not in use to save space. They consist of high-strength double-sided rubber-backed synthetic fabric and can be filled with standard onboard compressed-air systems. All our rubber fenders have been strictly tested. We can customize the rubber fender size based on clients needs. Therefore, our rubber fenders can suit different application requirements.
DockFender is a trusted manufacturer for ISO17357 pneumatic rubber fender/pneumatic fender/boat fenders, a leading anti-collision device for marine application in the world today. These compressed air fenders act as reliable protective medium against collision during ship-to-ship transfers (STS) and ship-to-berthing (STB).
Specifications
Place of Origin | China |
Brand Name | DockFender |
Model Number | DF-PF3300 |
Product Name | Marine Floating Dock Rubber Fender ISO17357 Yokohama Pneumatic Fender |
Material | Imported Natural Rubber |
Warranty | 3 Years |
Capacity | 500 Units Per Month |
Quality Certification | ISO17357-1:2014 |
Safety Standard | ABS, BV, SGS |
Accessories | Valve, Pressure Gauge, Inflation Rod, Wrench |
Color | Black or Customers' Requirements |
Diameter | 500-4500 mm |
Length | 1000-12000 mm |
Application | Port, Dock, Boat |
Specification | Initial Pressure 50KPa | Initial Pressure 80KPa | ||
D*L(mm) | R(KN) | GEA (KJ) | R(KN) | GEA (KJ) |
500*1000 | 64 | 6 | 85 | 8 |
600*1000 | 74 | 8 | 98 | 11 |
700*1500 | 137 | 17 | 180 | 24 |
1000*1500 | 182 | 32 | 239 | 45 |
1000*2000 | 257 | 45 | 338 | 63 |
1200*2000 | 297 | 63 | 390 | 88 |
1350*2500 | 427 | 102 | 561 | 142 |
1500*3000 | 579 | 153 | 761 | 214 |
1700*3000 | 639 | 191 | 840 | 267 |
2000*3000 | 750 | 265 | 985 | 368 |
2000*3500 | 875 | 308 | 1150 | 430 |
2500*4000 | 1381 | 663 | 1815 | 925 |
2500*5500 | 2019 | 943 | 2653 | 1317 |
3000*5000 | 2104 | 1210 | 2709 | 1571 |
3000*6000 | 2583 | 1485 | 3292 | 1888 |
3300*4500 | 1884 | 1175 | 2476 | 1640 |
3300*6500 | 3015 | 1814 | 3961 | 2532 |
3300*10600 | 5257 | 3067 | 6907 | 4281 |
4500*6500 | 4150 | 3432 | 5453 | 4790 |
4500*9000 | 5747 | 4752 | 7551 | 6633 |
4500*12000 | 7984 | 6473 | 10490 | 9037 |
Features
1. Floating fenders for applications subject to tidal lift.
2. Proportional increase of energy absorption and reaction force.
3. Attachment to chains, bars or rope systems.
4. Chain tyre net recommended for additional protection.
Applications
● Offshore platforms
● Oil and gas tankers
● Fast ferries and aluminum vessels
● In ports with extreme tidal variations
● Fishing vessel transport ships and ocean trawlers
![]() |

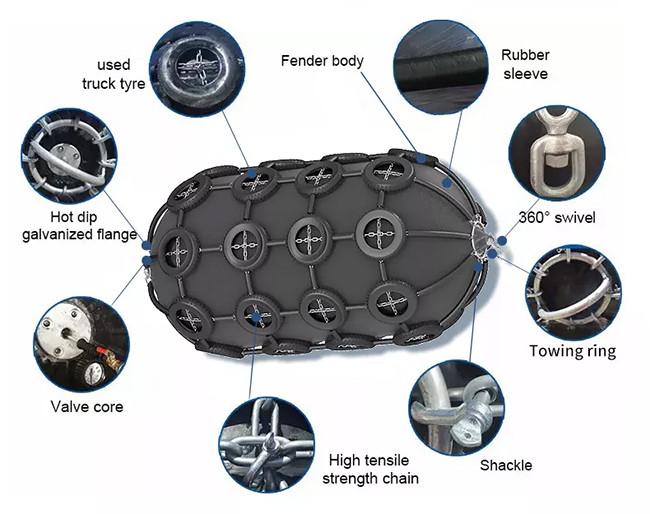

Marine Floating Rubber Dock Fender ISO17357 Yokohama Pneumatic Fender Images |
